Finned Tubular Heater

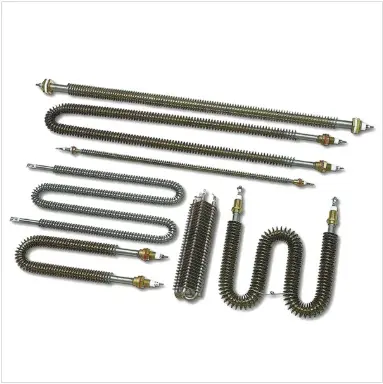

Types of Finned Heaters
Straight Type Finned Tubular Heater
The straight type finned tubular heater is essentially the standard tubular heater design, enhanced with tightly wound spiral fins along the pipe's surface. These fins serve to amplify the convective surface area, particularly for air heating applications. It's a straightforward yet highly favored configuration for finned tubular heaters. Typically, the most common size features a 12mm diameter and operates at 230V. The spiral fins measure between 24-30mm in diameter, offering optimal heat distribution. However, at Jaye, we can customize sizes to meet your specific requirements upon request.
U Shaped Finned Tubular Heaters
The U-shaped finned tubular heater is a popular product from Jaye, widely used in various heating industries like air duct heating, oven heating, furnace operations, and load banks. We specialize in customizing these heaters to meet your specific requirements. Our standard offering features a 12mm diameter, operating at 230V, with spiral fin diameters typically ranging between 24-30mm. However, we can also accommodate custom sizes to suit your unique needs. With our expertise, we serve customers worldwide, delivering top-quality finned tubular heaters tailored to their exact specifications.
M shaped finned tubular heaters
Jaye specializes in crafting versatile W or M-shaped finned heaters, designed to optimize heating capacity in tight spaces. We meticulously customize size, length, and R values to fit your exact needs. Our standard models feature a 12mm diameter, 230V operation, and 24-30mm spiral fin diameters, but we're adept at accommodating other dimensions upon request. With our expertise, we deliver top-quality finned tubular heaters tailored precisely to your specifications.
Rectangular Fin Heaters:
Rectangular fin heaters utilize stainless steel plates as fins to expand the heating area of the heating element. Among the various sizes available, the 25*50mm and 40*80mm fins stand out as the most sought-after options. Typically, these heaters feature a diameter of either 8.5mm or 10mm, which are commonly used. However, we are flexible and capable of accommodating other diameter requirements upon your request.
Specification Of Finned Tubular Heaters
Product Item | Finned Tubular Heating Elements |
Voltage | 110V-600V, Or Customized |
Sheath Watt Density | 2-13 w/cm2 |
Sheath Material | Stainless steel 304, 316, Incoloy 840, Incoloy 800 |
Fin Material | Steel or Stainless steel |
Sheath Lengths | 300mm to 3000mm or customized |
Maximum Temperature | Steel fins on steel sheath—750°F (400°C) Steel fins on Incoloy or SS sheath—750°F (400°C) Stainless Steel fins on stainless, Incoloy 840 or Incoloy 800 sheath—1200°F (650°C) |
Application | Air heater, used in oven and duct heater and other industry heating process |
